PVDF

PVDF - Polyvinylidene fluoride

Polyvinylidene fluoride (PVDF) is a very high purity thermoplastic fluoropolymer, since it is a homopolymer without additives, e.g. Stabilizers and dyes. As a result, PVDF is physiologically harmless and can be used in the ultrapure media range. In addition, it has a high mechanical strength and a very good chemical resistance. Compared to other fluoroplastics, PVDF is easy and easy to process.

General properties:

Physiological harmlessness, high purity
Temperature resistant from - 40 ° C to 150 ° C (depending on the type of stress)
Good resistance to most inorganic acids, even at high temperatures
Good mechanical properties
Very good sliding properties, high surface smoothness
Excellent abrasion resistance
UV-resistant
Good weldability

Application areas:

pure media
chemical plants
pharmaceutical equipment
Semiconductor industry
food industry

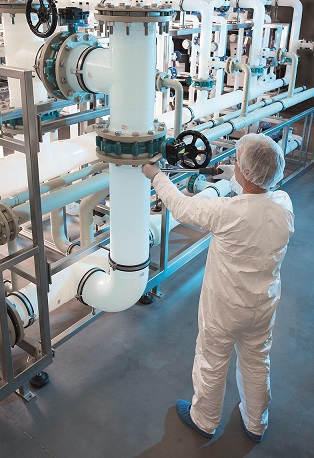

piping systems
wet benches
container liners

Delivery program:

Pipes
Fittings for butt-, IR- and electro fusion-welding HPF
Fittings for socket welding
electro fusion HPF E-sockets
Valves
Semi finished produccts
Welding technology

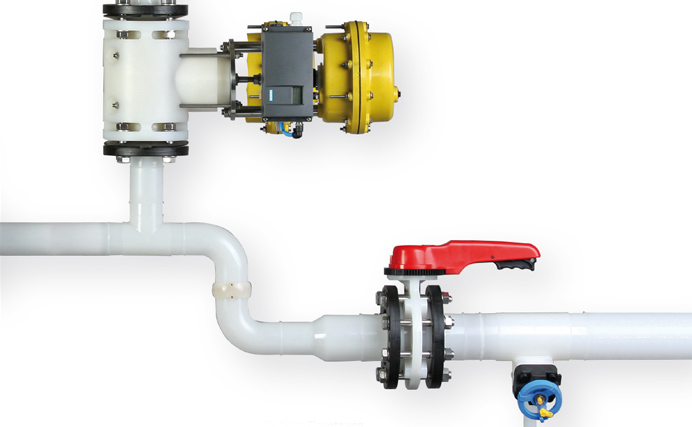

Advantages when using PVDF pipes and parts:

Easy installation by use of IR, HPF, butt and socket welding
High-purity (HP) materials meet particularly high requirements for ultrapure media
Flame retardant according to UL 94-V0, FM approved

Pressure table in bar for PVDF according to ISO 12162 with a safety factor of 1.6

Behavior in case of radiation exposure

Due to its chemical structure, PVDF has good resistance to UV and gamma irradiation and is very resistant to aging. Since it is a translucent material, the media are exposed to UV radiation.

Physiological harmlessness

PVDF is suitable for safe use for articles intended for repeated contact with foodstuffs according to FDA "Title 21, Code of Regulations (USA) Chapter 1, part 177.2510". PVDF is approved for use in processing plants and storage facilities of the US Department of Agriculture (USDA). PVDF also complies with the criteria of the "3-A Sanitary Standards for Multiple-Use Plastic Materials Used as Product Contact Surfaces for Dairy Equipment, Serial-No.2000".

Propagation of microorganisms on PVDF

The surface of PVDF forms an unfavorable substrate for the growth of microorganisms as well as glass. This is the conclusion of a study carried out by Solvay of the Center for the Development and Development of Industries Alimentaires et Chimiques (CERIA in Brussels). Because of this property, PVDF is used in the food industry (e.g., in dairies) as well as in the pharmaceutical industry (e.g., for sterilizable precision dosing pipettes) and in the ultrapure media sector of the semiconductor industry.

Chemical Resistance

PVDF has a remarkable resistance to most inorganic and organic acids, oxidizing media, aliphatic and aromatic hydrocarbons, alcohols and halogen-containing solvents. It is resistant to halogens - especially bromine (but not fluorine) - and weak alkalis. It is decomposed by fuming sulfuric acid, a few strongly basic amines, concentrated and hot alkalis as well as alkali metals. In highly polar solvents, such as acetone and ethyl acetate, it swells and is somewhat soluble in aprotic solvents such as dimethylformamide and dimethyl sulfoxide.
